SICH32F HRS2 Anglewinder RTR Chassis 1mm Offset 1:32 Slot Car Part

Adding to cart… The item has been added

Product Overview

Brand New/Never Used/Original Packaging

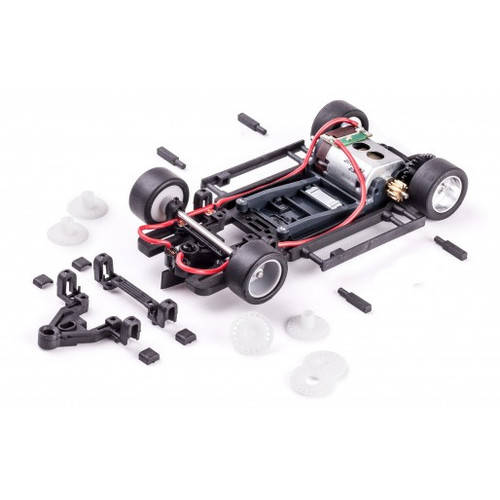

SICH32F HRS2 Anglewinder RTR Chassis 1mm Offset 1:32 Slot Car Part HRS2 complete and ready to run adjustable racing chassis to mount onto a wide range of slot car bodies.

Chassis Data

  • Adjustable wheelbase: 64mm-90mm
  • Adjustable wheel width: 57mm-61mm
  • Height: 19mm

Chassis Features

  • Anglewinder gear 28t (SIGA1628-PL)
  • Rear aluminum wheels 17.3x9.75mm  (SIPA62-ALS)
  • Plastic front wheels 17.3x8.2mm
  • 1167C1 rear tires
  • 1167C1 front tires
  • Long-Can 21,500rpm Boxer/2 motor
  • Pickup guide (SICH66)
  • 12t brass pinion
  • 1mm offset anglewinder motor mount
  • Rear axle stopper
  • Adjustable front axle ride height
  • Body to chassis cups
  • Wheel inserts
  • Screws (SICH41b)

HRS Chassis
The HRS chassis is a fully configurable, universal plastic chassis for slot cars. It comprises four main parts: main chassis, front chassis, motor mount, and body mounting means.

Adjustable Wheelbase
The front chassis can be positioned freely within a wheelbase between 64 and 90mm.

Selectable Front Axle Position
The front axle can be placed in one of two possible positions, one of which is completely adjustable, making it easy to adjust the distance from the pickup.

Flexible Assembly System
The chassis and the body can be joined with either four mounting posts and cups (HRS1 style), two three-post sidebars, or, on some cars, where possible, with the car’s own screw holes.
